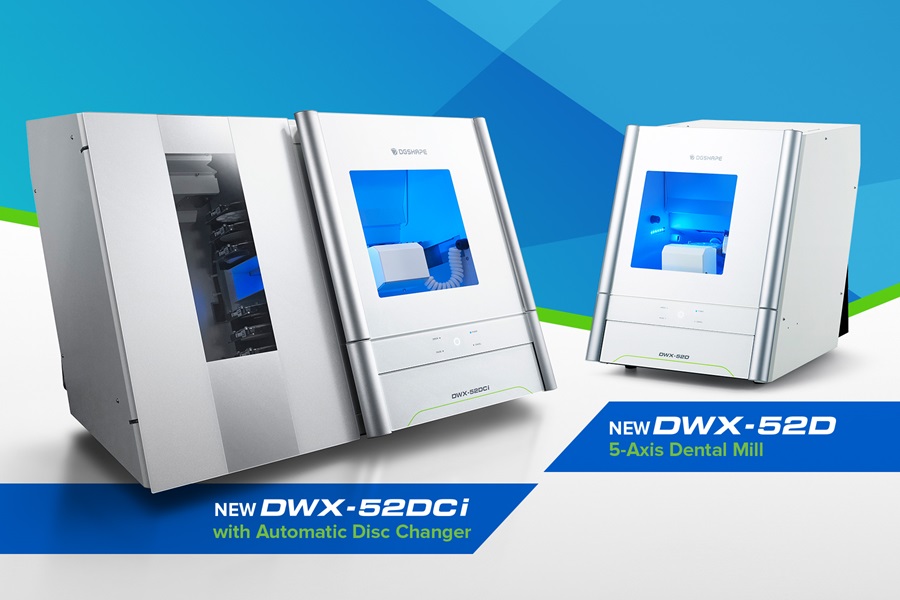

Roland DWX-52D 5-Axis Dental Milling Machine

Description

DWX-52D Specifications
Cuttable material Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal
Loadable workpiece shape External Diameter 98.5 mm
Max Height 60 mm
Step 10 mm
Pin Type Diameter 6 mm
Loadable workpiece weight Up to 850 g
Number of adapters housed 6
Operating speed XYZ axis: 6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motor Brushless DC Motor
Spindle speed 6,000 to 30,000 rpm
Rotary axis travel angle A axis ±360°
B axis ±30°
Number of burs housed 15
Attachable bur Shank diameter 4 mm
Length 40-55 mm
Compatible compressed air 0.05/0.2 MPa (Automatic switch)
Interface USB
Control command set RML-1, NC code
Power requirements AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power consumption Approximately 200 W
Operating noise During operation 70 dB(A) or less (when not cutting)
During standby 45 dB(A) or less
External dimensions Width 19.5 in (495 mm)
Depth
26.0 in (660 mm)
Height 23.6 in (600 mm)
Weight 147.7 lbs. (67 kg)
Installation environment Altitude Up to 6,562 ft. (2,000m)
Temperature 41 to 104 °F
5 to 40°C
Humidity 35 to 80% (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack
Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
USB cable Use the included USB cable
